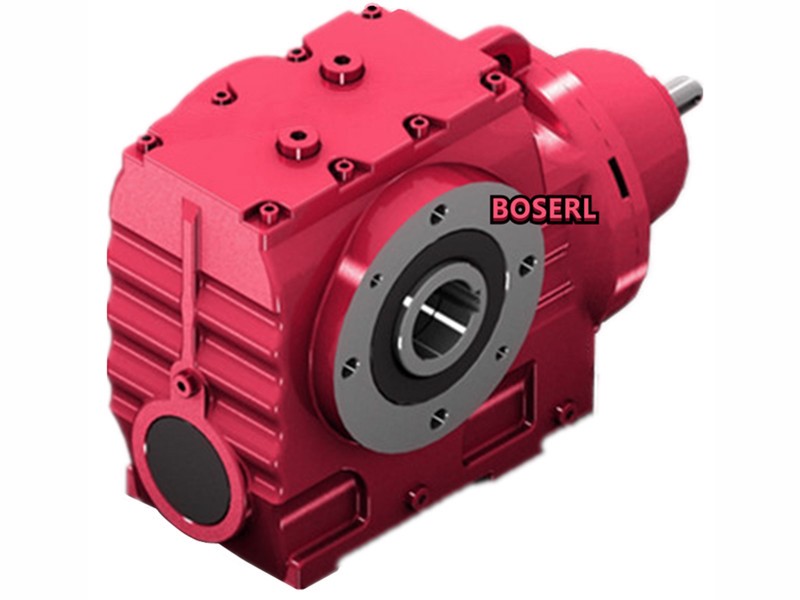

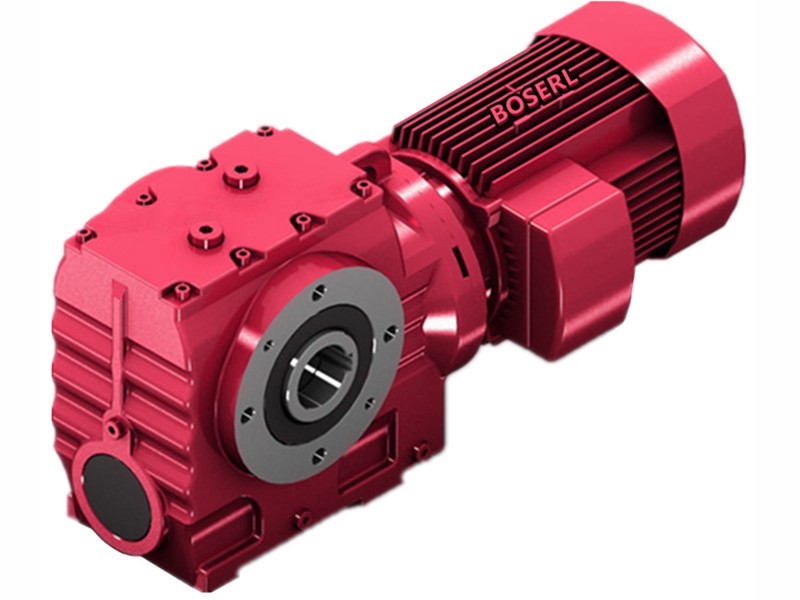

SA68減速電機詳細信息
SA68減速電機
訂購熱線：13360667204
SA68減速電機功率計算公式：齒輪減速馬達
翻轉機參數：滾輪直徑330，翻轉3000公斤，一分鐘翻轉27轉
3000公斤換算成扭矩=2940N.m
2940N.m×0.165滾筒半徑=485.1N.m
電機轉數1400÷輸出轉數27=51.85比
485.1N.m輸出扭矩÷51.85比=9.36N.m電機扭矩
9.36N.m電機扭矩換算成功率1.49KW以上
對應的SA68減速機型號參數：
型號：SA68-BVP1.5KW
減速比：54.7
輸出轉數：26轉每分鐘
輸出扭矩：445N.m
安全系數：1.05
SA68減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機連接減速機
SA68蝸輪減速機型號：
SA68減速電機型號參數：自鎖減速機
SA68減速機配0.18KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y0.18KW | 0.18KW | 4.00rpm | 250N.m | 2.20 |
| S67Y0.18KW | 0.18KW | 4.60rpm | 220N.m | 2.50 |
| S67Y0.18KW | 0.18KW | 4.80rpm | 210N.m | 2.60 |
SA68減速機配0.25KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y0.25KW | 0.25KW | 6.00rpm | 245N.m | 2.10 |
| S67Y0.25KW | 0.25KW | 6.80rpm | 215N.m | 2.40 |
| S67Y0.25KW | 0.25KW | 7.20rpm | 205N.m | 2.50 |
| S67Y0.25KW | 0.25KW | 8.20rpm | 187N.m | 2.80 |
| S67Y0.25KW | 0.25KW | 9.70rpm | 161N.m | 3.20 |
| S67Y0.25KW | 0.25KW | 11.0rpm | 147N.m | 3.50 |
| S67Y0.25KW | 0.25KW | 12.0rpm | 131N.m | 4.00 |
SA68減速機配0.37KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y0.37KW | 0.37KW | 6.40rpm | 345N.m | 1.50 |
| S67Y0.37KW | 0.37KW | 7.30rpm | 305N.m | 1.70 |
| S67Y0.37KW | 0.37KW | 7.60rpm | 290N.m | 1.75 |
| S67Y0.37KW | 0.37KW | 8.70rpm | 260N.m | 2.00 |
| S67Y0.37KW | 0.37KW | 10.0rpm | 225N.m | 2.30 |
| S67Y0.37KW | 0.37KW | 11.0rpm | 205N.m | 2.50 |
SA68減速機配0.55KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y0.55KW | 0.55KW | 6.40rpm | 515N.m | 1.00 |
| S67Y0.55KW | 0.55KW | 7.30rpm | 455N.m | 1.15 |
| S67Y0.55KW | 0.55KW | 7.60rpm | 435N.m | 1.20 |
| S67Y0.55KW | 0.55KW | 8.70rpm | 385N.m | 1.35 |
| S67Y0.55KW | 0.55KW | 10.0rpm | 335N.m | 1.55 |
| S67Y0.55KW | 0.55KW | 11.0rpm | 305N.m | 1.70 |
| S67Y0.55KW | 0.55KW | 13.0rpm | 270N.m | 1.90 |
| S67Y0.55KW | 0.55KW | 14.0rpm | 255N.m | 2.00 |
| S67Y0.55KW | 0.55KW | 16.0rpm | 220N.m | 2.30 |
| S67Y0.55KW | 0.55KW | 18.0rpm | 225N.m | 2.10 |
| S67Y0.55KW | 0.55KW | 21.0rpm | 200N.m | 2.40 |
SA68減速機配0.75KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y0.75KW | 0.75KW | 7.60rpm | 600N.m | 0.85 |
| S67Y0.75KW | 0.75KW | 8.00rpm | 575N.m | 0.90 |
| S67Y0.75KW | 0.75KW | 9.10rpm | 510N.m | 1.00 |
| S67Y0.75KW | 0.75KW | 11.0rpm | 440N.m | 1.15 |
| S67Y0.75KW | 0.75KW | 12.0rpm | 400N.m | 1.30 |
| S67Y0.75KW | 0.75KW | 13.0rpm | 360N.m | 1.45 |
| S67Y0.75KW | 0.75KW | 14.0rpm | 340N.m | 1.50 |
| S67Y0.75KW | 0.75KW | 17.0rpm | 295N.m | 1.75 |
| S67Y0.75KW | 0.75KW | 19.0rpm | 300N.m | 1.60 |
| S67Y0.75KW | 0.75KW | 22.0rpm | 260N.m | 1.80 |
| S67Y0.75KW | 0.75KW | 23.0rpm | 250N.m | 1.90 |
| S67Y0.75KW | 0.75KW | 26.0rpm | 220N.m | 2.20 |
| S67Y0.75KW | 0.75KW | 31.0rpm | 191N.m | 2.50 |
SA68減速機配1.1KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y1.1KW | 1.1KW | 12.0rpm | 595N.m | 0.85 |
| S67Y1.1KW | 1.1KW | 13.0rpm | 530N.m | 0.95 |
| S67Y1.1KW | 1.1KW | 14.0rpm | 505N.m | 1.05 |
| S67Y1.1KW | 1.1KW | 17.0rpm | 435N.m | 1.20 |
| S67Y1.1KW | 1.1KW | 18.0rpm | 400N.m | 1.30 |
| S67Y1.1KW | 1.1KW | 22.0rpm | 390N.m | 1.20 |
| S67Y1.1KW | 1.1KW | 23.0rpm | 370N.m | 1.30 |
| S67Y1.1KW | 1.1KW | 26.0rpm | 330N.m | 1.45 |
| S67Y1.1KW | 1.1KW | 31.0rpm | 280N.m | 1.70 |
| S67Y1.1KW | 1.1KW | 34.0rpm | 255N.m | 1.85 |
| S67Y1.1KW | 1.1KW | 39.0rpm | 225N.m | 2.10 |
| S67Y1.1KW | 1.1KW | 41.0rpm | 215N.m | 2.20 |
| S67Y1.1KW | 1.1KW | 48.0rpm | 185N.m | 2.60 |
SA68減速機配1.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y1.5KW | 1.5KW | 17.0rpm | 590N.m | 0.90 |
| S67Y1.5KW | 1.5KW | 18.0rpm | 540N.m | 0.95 |
| S67Y1.5KW | 1.5KW | 22.0rpm | 530N.m | 0.90 |
| S67Y1.5KW | 1.5KW | 23.0rpm | 505N.m | 0.95 |
| S67Y1.5KW | 1.5KW | 26.0rpm | 445N.m | 1.05 |
| S67Y1.5KW | 1.5KW | 31.0rpm | 380N.m | 1.25 |
| S67Y1.5KW | 1.5KW | 34.0rpm | 345N.m | 1.40 |
| S67Y1.5KW | 1.5KW | 39.0rpm | 305N.m | 1.55 |
| S67Y1.5KW | 1.5KW | 41.0rpm | 290N.m | 1.65 |
| S67Y1.5KW | 1.5KW | 48.0rpm | 250N.m | 1.90 |
| S67Y1.5KW | 1.5KW | 53.0rpm | 225N.m | 2.10 |
| S67Y1.5KW | 1.5KW | 59.0rpm | 215N.m | 1.55 |
| S67Y1.5KW | 1.5KW | 62.0rpm | 205N.m | 1.65 |
| S67Y1.5KW | 1.5KW | 70.0rpm | 184N.m | 1.85 |
| S67Y1.5KW | 1.5KW | 83.0rpm | 157N.m | 2.20 |
| S67Y1.5KW | 1.5KW | 92.0rpm | 142N.m | 2.40 |
| S67Y1.5KW | 1.5KW | 104rpm | 125N.m | 2.70 |
SA68減速機配2.2KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y2.2KW | 2.2KW | 31.0rpm | 560N.m | 0.85 |
| S67Y2.2KW | 2.2KW | 34.0rpm | 510N.m | 0.95 |
| S67Y2.2KW | 2.2KW | 39.0rpm | 450N.m | 1.05 |
| S67Y2.2KW | 2.2KW | 41.0rpm | 425N.m | 1.10 |
| S67Y2.2KW | 2.2KW | 48.0rpm | 365N.m | 1.30 |
| S67Y2.2KW | 2.2KW | 53.0rpm | 335N.m | 1.45 |
| S67Y2.2KW | 2.2KW | 61.0rpm | 290N.m | 1.65 |
| S67Y2.2KW | 2.2KW | 70.0rpm | 270N.m | 1.25 |
| S67Y2.2KW | 2.2KW | 82.0rpm | 230N.m | 1.50 |
| S67Y2.2KW | 2.2KW | 91.0rpm | 205N.m | 1.65 |
| S67Y2.2KW | 2.2KW | 104rpm | 184N.m | 1.85 |
| S67Y2.2KW | 2.2KW | 110rpm | 174N.m | 1.95 |
| S67Y2.2KW | 2.2KW | 129rpm | 149N.m | 2.30 |
| S67Y2.2KW | 2.2KW | 142rpm | 136N.m | 2.50 |
| S67Y2.2KW | 2.2KW | 164rpm | 118N.m | 2.80 |
SA68減速機配3KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y3KW | 3KW | 42.0rpm | 570N.m | 0.85 |
| S67Y3KW | 3KW | 49.0rpm | 490N.m | 1.00 |
| S67Y3KW | 3KW | 54.0rpm | 445N.m | 1.05 |
| S67Y3KW | 3KW | 62.0rpm | 390N.m | 1.25 |
| S67Y3KW | 3KW | 71.0rpm | 360N.m | 0.95 |
| S67Y3KW | 3KW | 84.0rpm | 305N.m | 1.10 |
| S67Y3KW | 3KW | 93.0rpm | 275N.m | 1.20 |
| S67Y3KW | 3KW | 106rpm | 245N.m | 1.40 |
| S67Y3KW | 3KW | 112rpm | 230N.m | 1.45 |
| S67Y3KW | 3KW | 132rpm | 199N.m | 1.70 |
| S67Y3KW | 3KW | 145rpm | 181N.m | 1.90 |
| S67Y3KW | 3KW | 167rpm | 157N.m | 2.10 |
| S67Y3KW | 3KW | 192rpm | 137N.m | 2.20 |
SA68減速機配4KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y4KW | 4KW | 84.0rpm | 405N.m | 0.85 |
| S67Y4KW | 4KW | 94.0rpm | 370N.m | 0.90 |
| S67Y4KW | 4KW | 106rpm | 325N.m | 1.05 |
| S67Y4KW | 4KW | 113rpm | 305N.m | 1.10 |
| S67Y4KW | 4KW | 132rpm | 260N.m | 1.30 |
| S67Y4KW | 4KW | 146rpm | 240N.m | 1.40 |
| S67Y4KW | 4KW | 168rpm | 205N.m | 1.60 |
| S67Y4KW | 4KW | 193rpm | 182N.m | 1.60 |
SA68減速機配5.5KW電機參數
| 型號 | 功率 | 輸出轉數 | 輸出扭矩 | 服務系數 |
| S67Y5.5KW | 5.5KW | 132rpm | 360N.m | 0.95 |
| S67Y5.5KW | 5.5KW | 145rpm | 330N.m | 1.00 |
| S67Y5.5KW | 5.5KW | 167rpm | 285N.m | 1.15 |
| S67Y5.5KW | 5.5KW | 192rpm | 250N.m | 1.15 |
SA68減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：S68減速機
關鍵詞:GSA系列減速機配電機一體式_伺服電機連接減速機_私服電機配減速機_SA系列減速機_私服電機減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器
SA系列蝸輪蝸桿減速機型號：SA38減速機,SA48減速機,SA58減速機,SA68減速機,SA78減速機,SA88減速機,SA98齒輪減速馬達
SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: SA68減速電機 SA67蝸輪減速機 SA67減速機功率 SA67減速機基座尺寸 SA67減速機模型 SA67減速機型號參數
