SA38減速電機詳細信息

prevnext

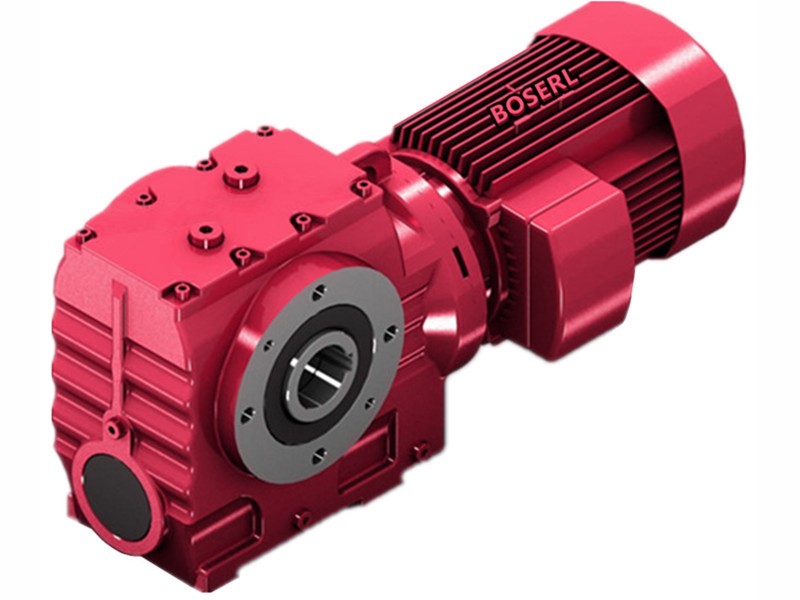

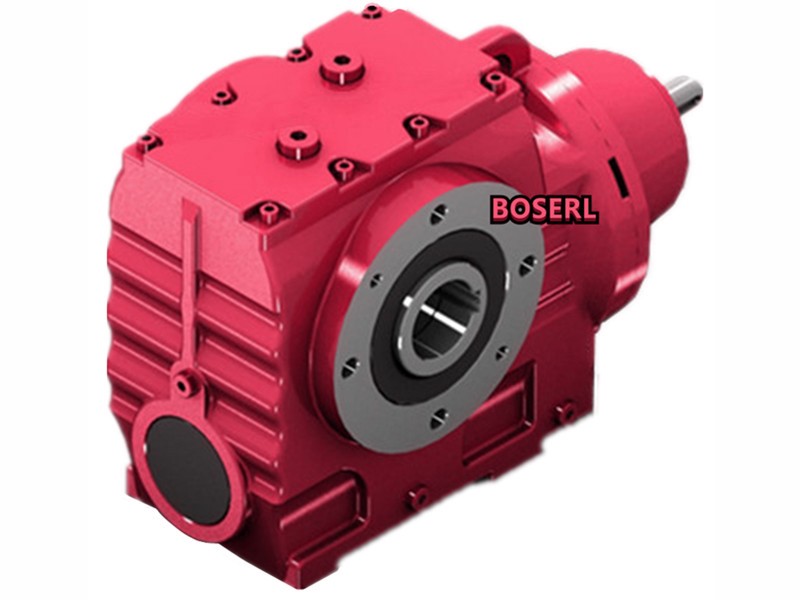

SA38減速電機

訂購熱線：13360667204
  1. 詳細信息

SA38減速電機功率計算公式：齒輪減速馬達

翻轉機參數：滾輪直徑90，翻轉600公斤，一分鐘翻轉95轉

600公斤換算成扭矩=588N.m

588N.m×0.045滾筒半徑=26.46N.m

電機轉數1400÷輸出轉數95=14.74比

26.46N.m輸出扭矩÷14.74比=1.8N.m電機扭矩

1.8N.m電機扭矩換算成功率0.29KW以上

對應的SA38減速機型號參數：

型號：SA38-BVP0.37KW

減速比：15.53

輸出轉數：89轉每分鐘

輸出扭矩：35N.m

安全系數：1.45

SA38減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機連接減速機


SA38蝸輪減速機型號：


SA38減速電機型號參數：自鎖減速機

SA38減速機配0.12KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y0.12KW0.12KW8.80rpm74N.m1.25
S37Y0.12KW0.12KW9.60rpm68N.m1.35
S37Y0.12KW0.12KW11.0rpm60N.m1.55
S37Y0.12KW0.12KW13.0rpm52N.m1.70
S37Y0.12KW0.12KW14.0rpm49N.m1.75
S37Y0.12KW0.12KW16.0rpm44N.m1.95
S37Y0.12KW0.12KW17.0rpm41N.m2.10
S37Y0.12KW0.12KW19.0rpm37N.m2.30
S37Y0.12KW0.12KW22.0rpm35N.m2.30
S37Y0.12KW0.12KW25.0rpm33N.m2.50
S37Y0.12KW0.12KW27.0rpm33N.m2.50
S37Y0.12KW0.12KW32.0rpm28N.m2.90
S37Y0.12KW0.12KW37.0rpm24N.m3.20
S37Y0.12KW0.12KW39.0rpm23N.m3.40
S37Y0.12KW0.12KW45.0rpm20N.m3.70
S37Y0.12KW0.12KW48.0rpm19N.m3.90
S37Y0.12KW0.12KW54.0rpm17N.m4.40
S37Y0.12KW0.12KW61.0rpm15N.m4.80
S37Y0.12KW0.12KW69.0rpm14N.m3.60
S37Y0.12KW0.12KW76.0rpm13N.m3.90
S37Y0.12KW0.12KW89.0rpm11N.m4.40

SA38減速機配0.18KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y0.18KW0.18KW8.40rpm115N.m0.80
S37Y0.18KW0.18KW9.10rpm107N.m0.85
S37Y0.18KW0.18KW11.0rpm93N.m1.00
S37Y0.18KW0.18KW12.0rpm82N.m1.10
S37Y0.18KW0.18KW13.0rpm77N.m1.15
S37Y0.18KW0.18KW15.0rpm68N.m1.25
S37Y0.18KW0.18KW16.0rpm64N.m1.30
S37Y0.18KW0.18KW18.0rpm58N.m1.45
S37Y0.18KW0.18KW21.0rpm55N.m1.45
S37Y0.18KW0.18KW24.0rpm52N.m1.60
S37Y0.18KW0.18KW26.0rpm51N.m1.60
S37Y0.18KW0.18KW30.0rpm44N.m1.85
S37Y0.18KW0.18KW35.0rpm38N.m2.10
S37Y0.18KW0.18KW38.0rpm36N.m2.20
S37Y0.18KW0.18KW43.0rpm32N.m2.40
S37Y0.18KW0.18KW46.0rpm30N.m2.50
S37Y0.18KW0.18KW52.0rpm26N.m2.80
S37Y0.18KW0.18KW59.0rpm24N.m3.10
S37Y0.18KW0.18KW66.0rpm22N.m2.30
S37Y0.18KW0.18KW72.0rpm21N.m2.50
S37Y0.18KW0.18KW85.0rpm18N.m2.80
S37Y0.18KW0.18KW99.0rpm15N.m3.20
S37Y0.18KW0.18KW106rpm14N.m3.40
S37Y0.18KW0.18KW121rpm13N.m3.80
S37Y0.18KW0.18KW129rpm12N.m4.00

SA38減速機配0.25KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y0.25KW0.25KW13.0rpm108N.m0.80
S37Y0.25KW0.25KW15.0rpm96N.m0.90
S37Y0.25KW0.25KW16.0rpm91N.m0.95
S37Y0.25KW0.25KW18.0rpm81N.m1.05
S37Y0.25KW0.25KW21.0rpm73N.m1.10
S37Y0.25KW0.25KW23.0rpm78N.m1.05
S37Y0.25KW0.25KW25.0rpm72N.m1.15
S37Y0.25KW0.25KW30.0rpm62N.m1.30
S37Y0.25KW0.25KW35.0rpm54N.m1.45
S37Y0.25KW0.25KW37.0rpm51N.m1.55
S37Y0.25KW0.25KW42.0rpm45N.m1.70
S37Y0.25KW0.25KW45.0rpm42N.m1.80
S37Y0.25KW0.25KW51.0rpm37N.m2.00
S37Y0.25KW0.25KW58.0rpm33N.m2.20
S37Y0.25KW0.25KW65.0rpm32N.m1.65
S37Y0.25KW0.25KW71.0rpm29N.m1.80
S37Y0.25KW0.25KW84.0rpm25N.m2.00
S37Y0.25KW0.25KW97.0rpm22N.m2.30
S37Y0.25KW0.25KW104rpm20N.m2.40
S37Y0.25KW0.25KW119rpm18N.m2.70
S37Y0.25KW0.25KW127rpm17N.m2.80
S37Y0.25KW0.25KW144rpm15N.m3.10
S37Y0.25KW0.25KW162rpm13N.m3.40
S37Y0.25KW0.25KW191rpm11N.m3.80

SA38減速機配0.37KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y0.37KW0.37KW22.0rpm103N.m0.80
S37Y0.37KW0.37KW27.0rpm101N.m0.80
S37Y0.37KW0.37KW32.0rpm87N.m0.95
S37Y0.37KW0.37KW37.0rpm76N.m1.05
S37Y0.37KW0.37KW39.0rpm71N.m1.10
S37Y0.37KW0.37KW45.0rpm62N.m1.20
S37Y0.37KW0.37KW48.0rpm59N.m1.30
S37Y0.37KW0.37KW54.0rpm52N.m1.40
S37Y0.37KW0.37KW61.0rpm47N.m1.55
S37Y0.37KW0.37KW69.0rpm44N.m1.20
S37Y0.37KW0.37KW76.0rpm41N.m1.30
S37Y0.37KW0.37KW89.0rpm35N.m1.45
S37Y0.37KW0.37KW103rpm30N.m1.60
S37Y0.37KW0.37KW111rpm28N.m1.70
S37Y0.37KW0.37KW126rpm25N.m1.95
S37Y0.37KW0.37KW135rpm23N.m2.00
S37Y0.37KW0.37KW153rpm21N.m2.20
S37Y0.37KW0.37KW172rpm18N.m2.40
S37Y0.37KW0.37KW203rpm16N.m2.70

SA38減速機配0.55KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y0.55KW0.55KW45.0rpm93N.m0.80
S37Y0.55KW0.55KW48.0rpm87N.m0.85
S37Y0.55KW0.55KW54.0rpm78N.m0.95
S37Y0.55KW0.55KW61.0rpm69N.m1.05
S37Y0.55KW0.55KW89.0rpm52N.m0.95
S37Y0.55KW0.55KW103rpm45N.m1.10
S37Y0.55KW0.55KW72.0rpm60N.m1.20
S37Y0.55KW0.55KW111rpm42N.m1.15
S37Y0.55KW0.55KW126rpm37N.m1.30
S37Y0.55KW0.55KW135rpm35N.m1.35
S37Y0.55KW0.55KW153rpm31N.m1.50
S37Y0.55KW0.55KW172rpm27N.m1.65
S37Y0.55KW0.55KW203rpm23N.m1.85

SA38減速機配0.75KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y0.75KW0.75KW75.0rpm78N.m0.90
S37Y0.75KW0.75KW115rpm55N.m0.85
S37Y0.75KW0.75KW132rpm48N.m1.00
S37Y0.75KW0.75KW140rpm46N.m1.05
S37Y0.75KW0.75KW159rpm40N.m1.15
S37Y0.75KW0.75KW179rpm36N.m1.25
S37Y0.75KW0.75KW211rpm31N.m1.40

SA38減速機配1.1KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y1.1KW1.1KW178rpm53N.m0.85
S37Y1.1KW1.1KW209rpm45N.m0.95
S37Y1.1KW1.1KW214rpm44N.m0.95
S37Y1.1KW1.1KW230rpm41N.m0.95
S37Y1.1KW1.1KW263rpm36N.m1.10
S37Y1.1KW1.1KW281rpm34N.m1.10
S37Y1.1KW1.1KW318rpm30N.m1.20
S37Y1.1KW1.1KW359rpm27N.m1.30
S37Y1.1KW1.1KW422rpm23N.m1.25

SA38減速機配1.5KW電機參數

型號功率輸出轉數輸出扭矩服務系數
S37Y1.5KW1.5KW314rpm42N.m0.85
S37Y1.5KW1.5KW354rpm37N.m0.95
S37Y1.5KW1.5KW416rpm32N.m0.90

SA38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：S38減速機

關鍵詞:GSA系列減速機配電機一體式_伺服電機連接減速機_私服電機配減速機_SA系列減速機_私服電機減速機_SA系列減速器_伺服電機連接減速器_私服減速機_私服電機減速器

SA系列蝸輪蝸桿減速機型號：SA38減速機,SA48減速機,SA58減速機,SA68減速機,SA78減速機,SA88減速機,SA98齒輪減速馬達

SA系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   SA38減速電機 SA37蝸輪減速機 SA37減速機功率 SA37減速機基座尺寸 SA37減速機模型 SA37減速機型號參數

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SA38減速電機模型基座尺寸下載 點擊下載
SA38減速電機型號參數下載 點擊下載
